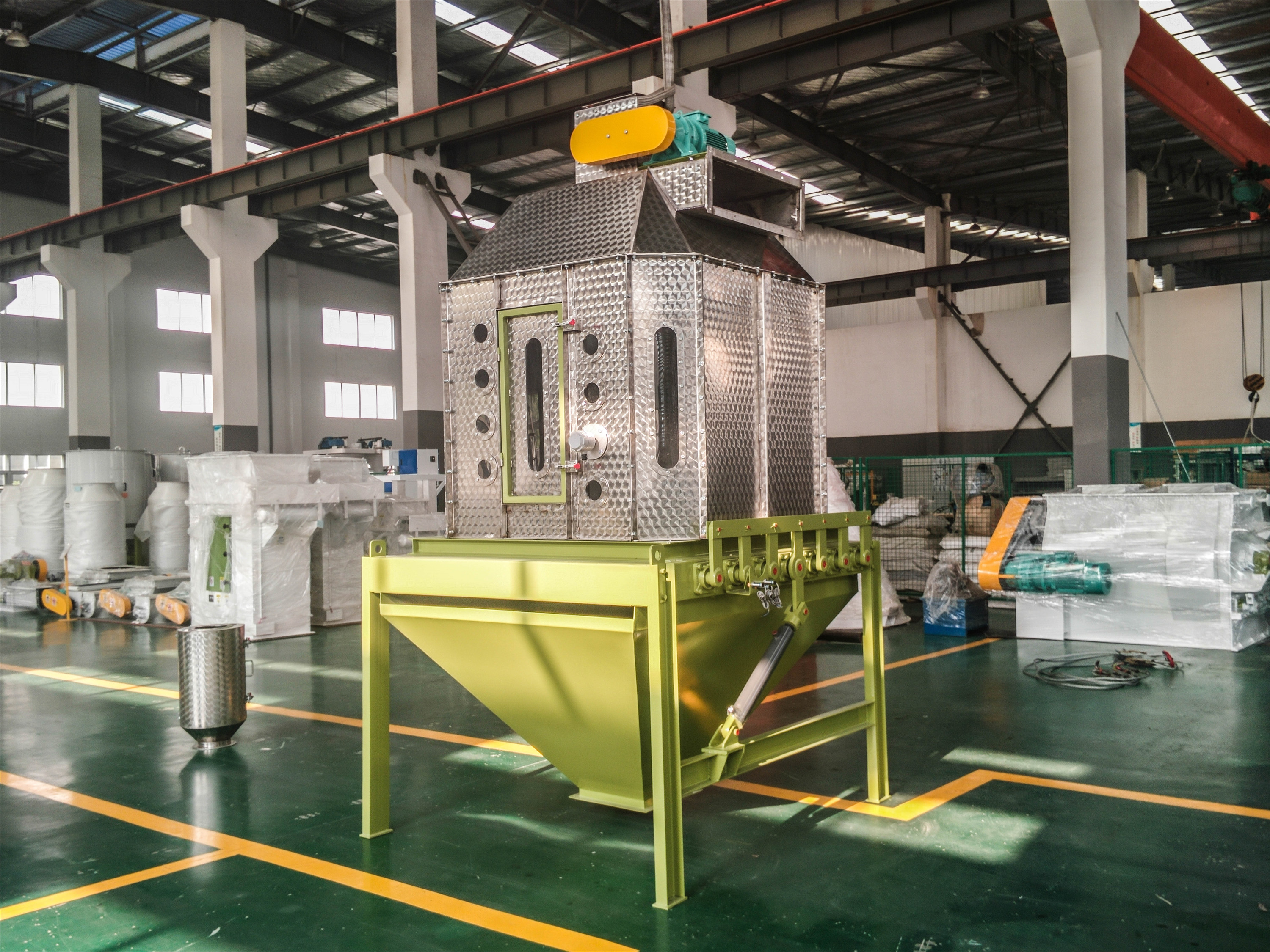

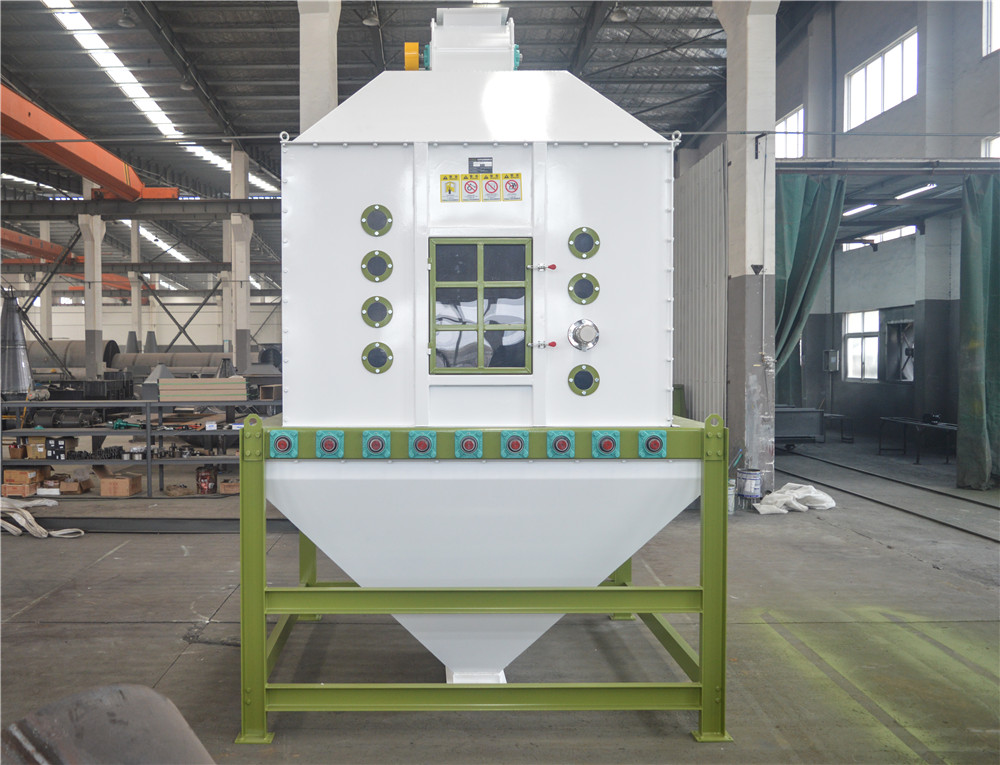

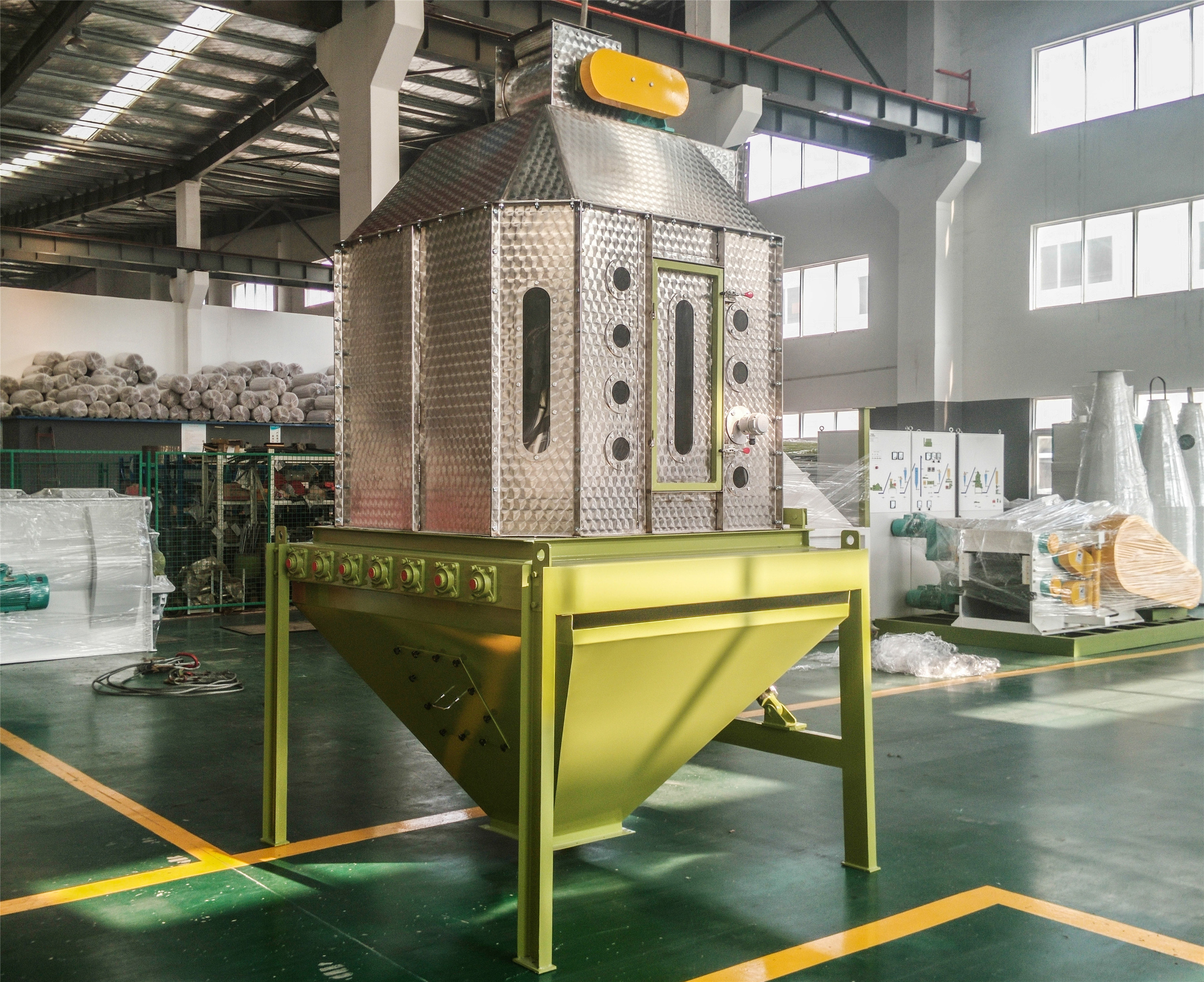

Cooler Details
It is mainly used for cooling of pellet feed in the feed pelleting section. It cools the pellet feed coming from
pellet mill and with a temperature 70~ 90 degree to a temperature 3~5 degree slightly higher than ambient
temperature, and is capable of lowering to a safety moisture content. Th cooled pellets not only improve the
pellet firmness but also can prevent from going mouldy, that it is good for the transportation and storage of
pellet feed.
| Model | Capacity(T/H) | Cooling volume(m3) | Power(KW) |
| SKLB2.5 | 5 | 2.5 | 1.5+0.55 |
| SKLB4 | 10 | 4 | 1.5+0.55 |
| SKLB6 | 15 | 6 | 1.5+0.55 |
| SKLB8 | 20 | 8 | 1.5+0.55+1.1 |
| SKLB10 | 25 | 10 | 1.5+1.1+0.75 |
| SKLB12 | 30 | 12 | 1.5+1.1+0.75 |
Features:
1.Using advanced counter-current cooling principle, the temperature after cooling will not be over 5℃ of the room
temperature, the precipitation rate of 1% -3%, which extends storage time of high-quality pellets.
2.Equipped with pendulum flap discharge mechanism, smooth discharge, adjustable discharge flow and speed,
uniform discharge volume.
3.Set the front access door on the equipment for convenient of daily maintenance.
4.Vertical layout, simple and beautiful appearance.
6.Cooling time:not less than 6-10min
7.Material after cooling:less than 3-5℃ of room temperature
