YongLi supply complete turnkey project for aqua feed pellet line.
The feed mill capacity range from 0.5TPH, 2TPH, 5TPH, 10TPH, 15TPH, 20TPH to 25TPH per unit.
Aqua Feed Pellet Machine Application
Available raw materials: corn, brown rice, sorghum,soybean and all other feed formula materials etc.
Applicable feed pellets for animals:fish, shrimp, crab etc and other aqua animals.
Features
1. Available raw materials: corn, brown rice, paddy, sorghum,soybean and other feed formula materials etc.
2. Equipped with double conditioners.
3. Gear directly-connecting driving.
4. Full stainless steel feeder.
5. Stainless steel conditioner.
6. Main gear and pinion shaft.
7. Gearbox and driving holes' accuracy.
8. Passed ISO9001 and EU CE certification.
9. Feed chute.
10.(Optional)Intelligent automatic control system.
Feed Mill Technical Parameters
The single machine max output capacity is 25 t/h, forming pellet rate of 99%.
We can design the proposal according to your special requirements. Contact to know more.
Model | Capacity(t/h) | Power(kw) | Ring die internal diameter(mm) | Pellet size(mm) |
YPM250 | 0.5-1 | 15 | ø250 | ø1-5 |
YPM320 | 1-2.5 | 37 | ø320 | ø1-5 |
YPM350 | 2.5-5 | 55 | ø350 | ø1-5 |
YPM400 | 4-6 | 90 | ø400 | ø1-5 |
YPM420 | 5-10 | 110 | ø420 | ø1-5 |
YPM508 | 7-12 | 132/160 | ø508 | ø1-5 |
YPM600X | 8-15 | 185/200 | ø600 | ø1-5 |
YPM660 | 9-18 | 200/220/250 | ø660 | ø1-5 |
YPM800 | 13-25 | 250/280/315/355 | ø800 | ø1-5 |

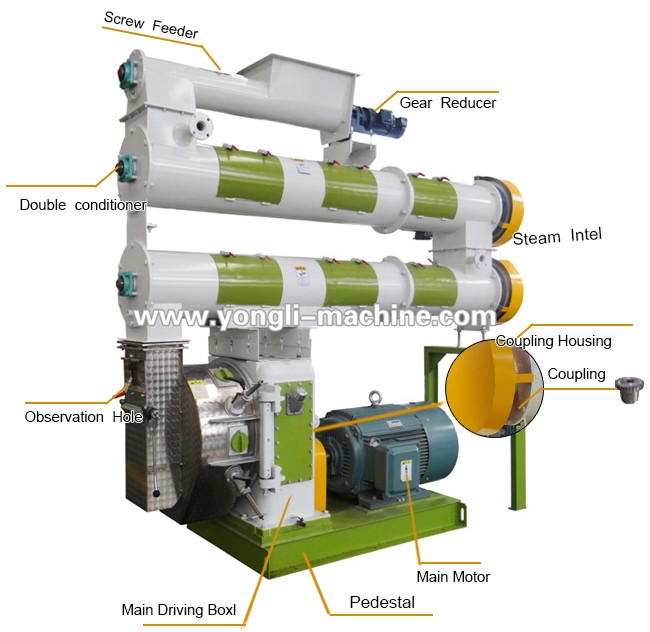

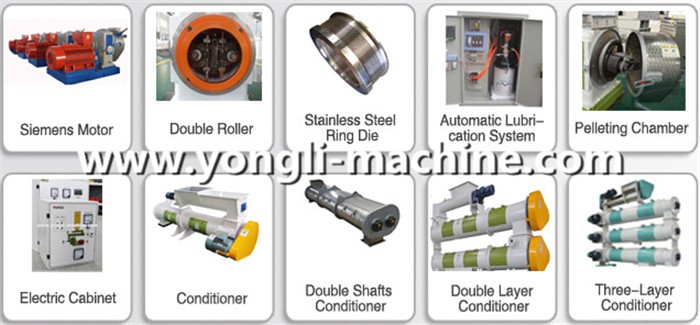

Main Structure For Feed Mill

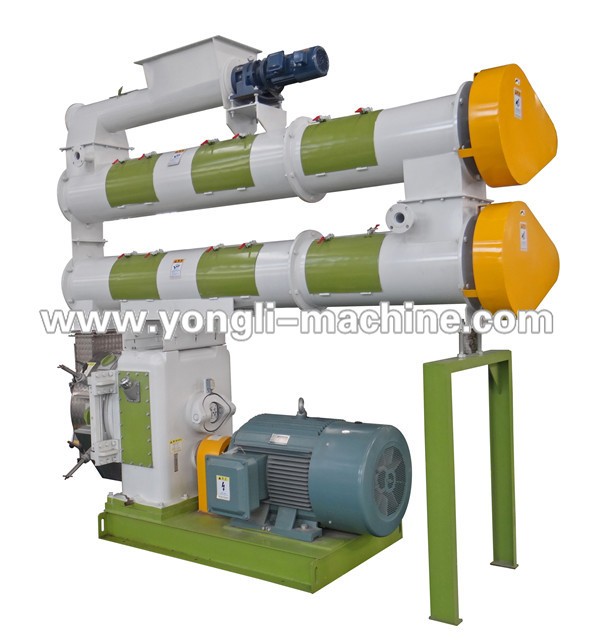

Aqua Fish Feed Mill With Double Layers Conditioner

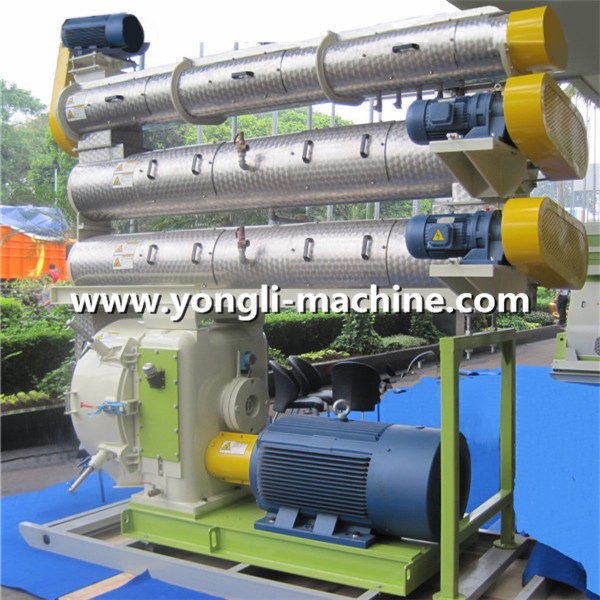

Aqua Fish Feed Mill With Three Layers Conditioner

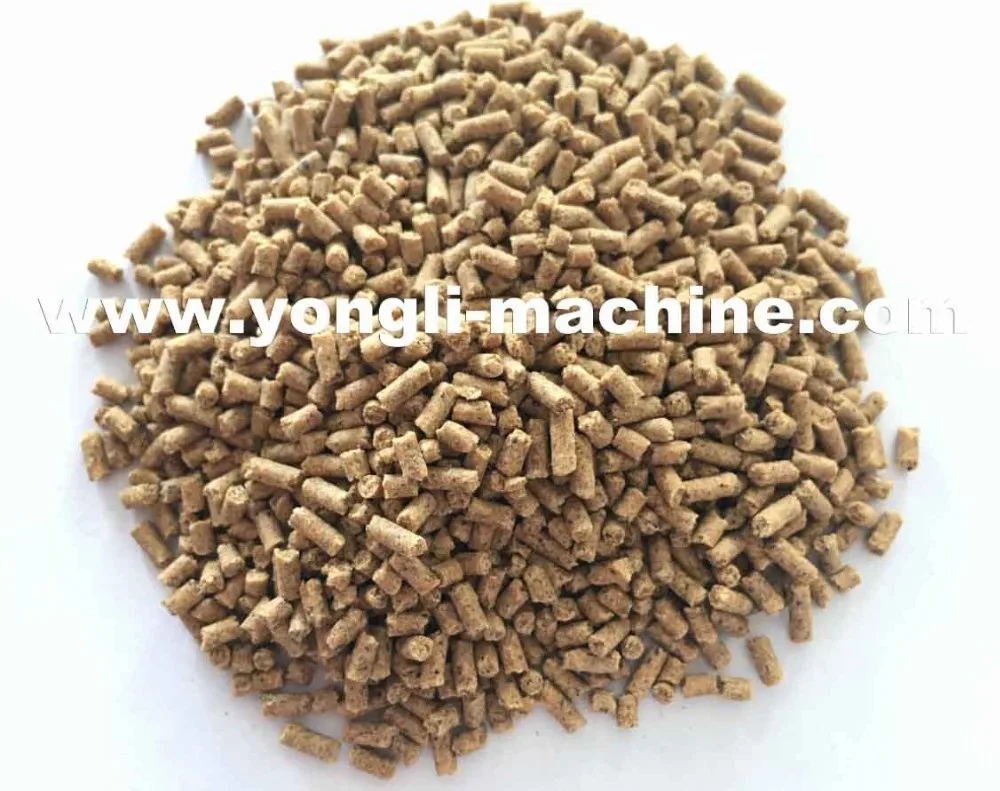

Aqua Animal Feed Pellets Show

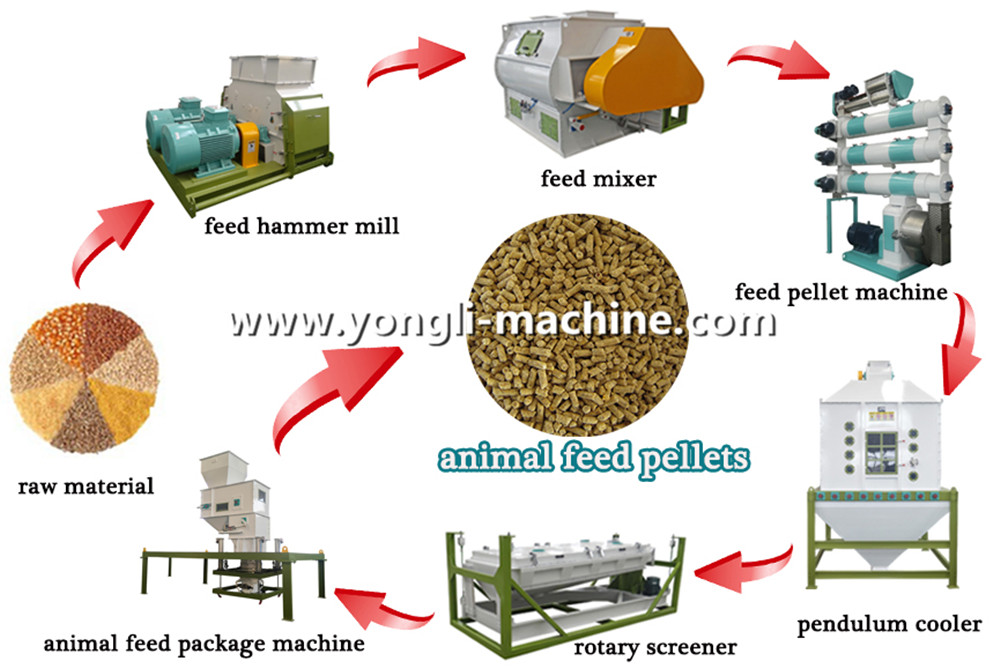

Feed Pelletizing Process
Including: rawing material receiving,grinding,mixing,pelleting,cooling & packing process.
We can also provide fish feed extruder.If you want to learn floating fish feed extruder,
please click here to browse further information.

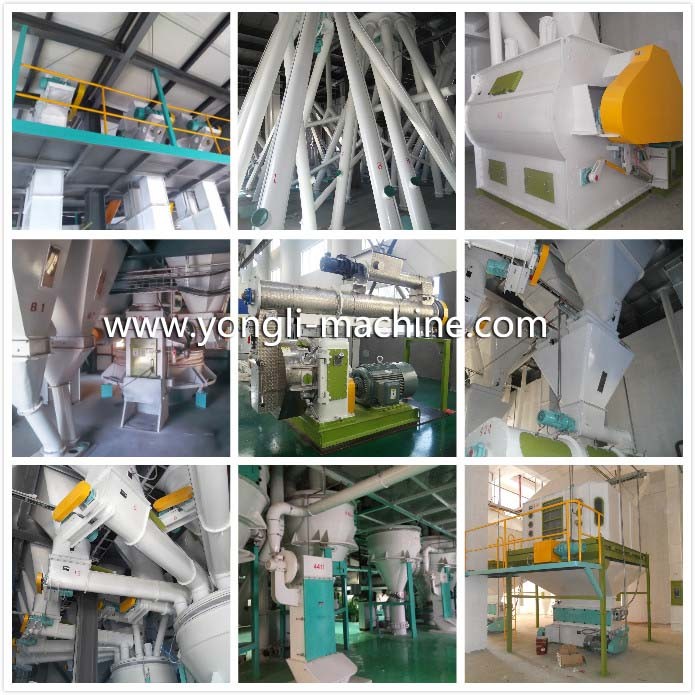

YONGLI feed projects
Company Information
YONGLI Client
Our Services
YONGLI Service:
1. Make optimal design and layout according to clients raw material and capacity request.
2. Make booking for shipment from YONGLI factory to clients factory.
3. Provide installation and debugging for clients.
4. Provide free training on-site for clients.
5. Provide English manual for whole line machines to clients.
6. Quarterly return visit to clients.
Advantages
YONGLI Advantages:
1. Inquiry could be replied within 2 hours.
2. Warranty period for max. five years.
3. Customized design based on clients request.
4. Independent R&D team and strict & scientific management system.
Packaging & Shipping
Packaging: Wooden box or Iron case or pallet, etc.
Shipping: FOB Shanghai, CNF, CIF clients port.
Inquiry
If you are interested in our products, please click "send" now!
Please kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
