8-10T/H Biomass Pellet Plant


For the biomass pellet line, we have produced over 500 turnkey projects to our clients.

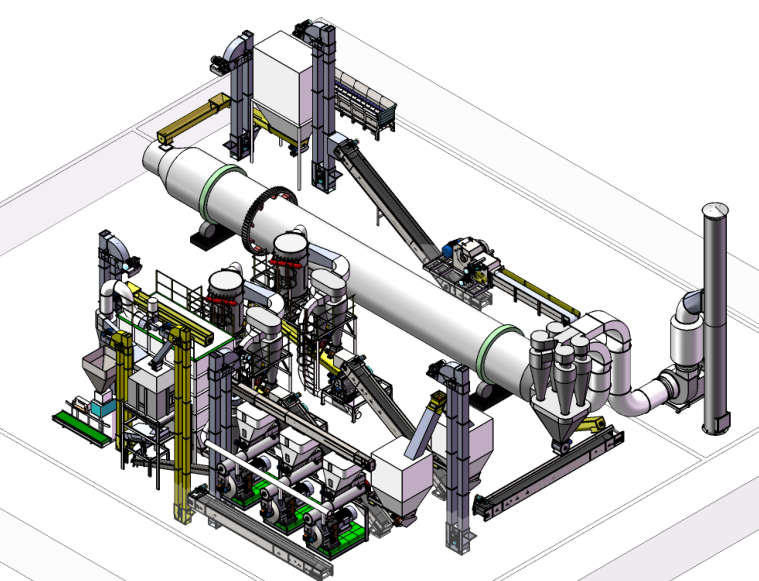

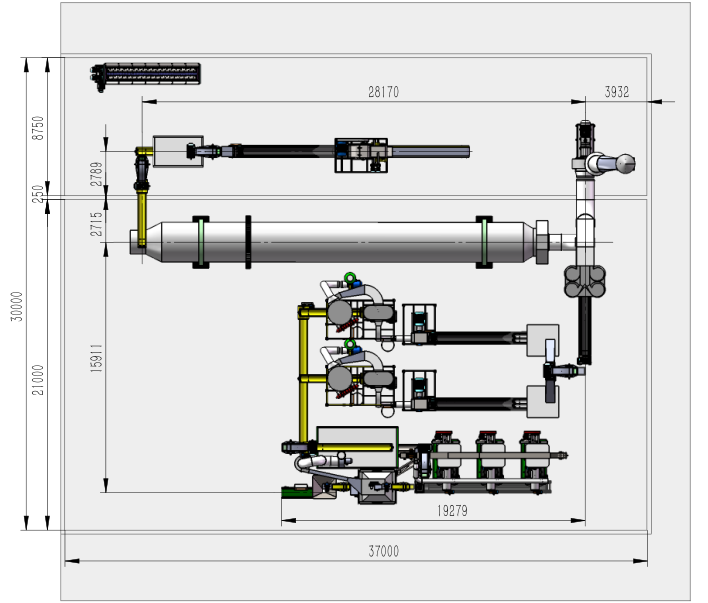

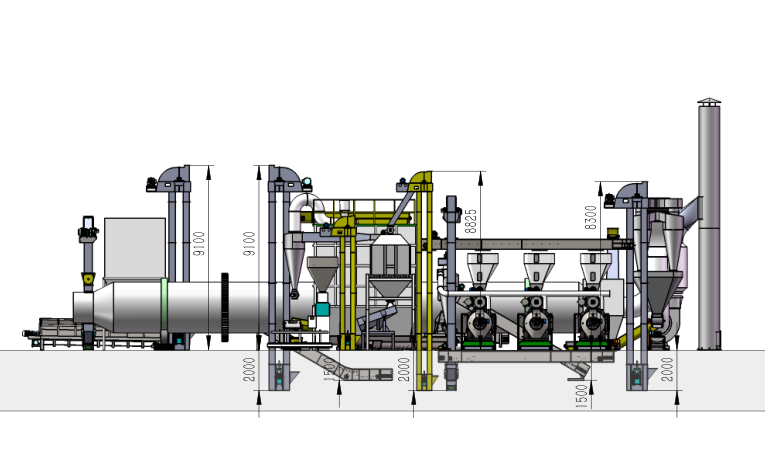

The following 3D Layout is the 8-10T/H wood pellet line which we produced for our customer:





This pellet line including：

Group 1: Debarking Process

Group 2: Chipping Process

Group 3: Grinding Process

Group 4: Heat Supply Process

Group 5: Drying Process

Group 6: Pelleting Process

Group 7: Cooling and Package process

Group 8: Elecric control system

Group 9: Installation

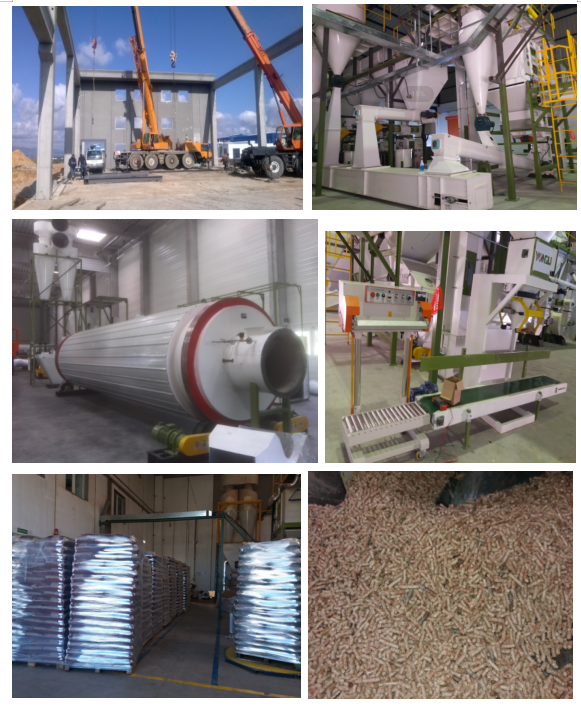

The pictures of the pellet lines as below:


The spec. of YONGLI pellet mill:

Model
Capacity (t/h)
Power (kw)
Inner diameter of die
Pellet size (mm)
Dimension (mm)
Net
weight
(T)
YPM250
0.1-0.2
18.5
250
Ø6,Ø8,Ø10
1300*1330*850
0.73
YPM320
0.3-0.5
37
320
Ø6,Ø8,Ø10
2100*1100*1140
1.2
YPM350
0.5-0.8
55
350
Ø6,Ø8,Ø10
2500*1100*1150
1.65
YPM420
0.9-1.2
90
420
Ø6,Ø8,Ø10
3000*1200*1470
2.8
YPM520
1.5-2
160
520
Ø6,Ø8,Ø10
3200*1300*1420
4
YPM600
2.5-3
185
600
Ø6,Ø8,Ø10
3000*1750*1810
4.5
YPM660
3-3.5
200
660
Ø6,Ø8,Ø10
3570*1800*1850
7.5
YPM800
4-5
315
800
Ø6,Ø8,Ø10
4300*1900*2040
11

The picture of  Yongli Pellet mill:


The picture of  Yongli dryer:


The picture of Yongli wood chipper:


The picture of Yongli Hammer mill:



FAQ

1.Q: How can I trust on your quality?
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). Yongli wins 40 national patents for machines by our senior R&D engineers.

2. Q: What is your superiority comparing with other suppliers?
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
3. Q: Does your company provide Engineers Abroad Service?
Sure, we provide it. And we can provide free training for on-site workers.
4. Q: How to train our staff about operation and maintenance?

 We will provide every detailed technical instructive, pictures, videos to teach them for the operation

and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

5. Q:What shipment terms you offer?
We can offer EXW, FOB, CIF, CFR etc based on your request.
6. Q:What payment terms you take?
T/T, LC at sight etc.
7. Where is your factory located? How can I visit there?

Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai.

You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up

at the airport or train station etc.
