Product Description
The pellet mill with one layer conditioner:
Screw Feeder: ( adjust the feeding speed with inverter)
Stainless Steel conditioner:( sofiten and even material, adjust moisture content, increase capacity and also improve
the appearance of pellets, promote the curing and evenness of pellets etc)
The pellet mill with one layer conditioner is widely used for Poultry and Livestock:
We use famous brand parts to guarantee the quality of line and every machines are processed in our own
CNC workshop. Siemens motor
Introducing the Model of YPM660:
Item | Feed pellet machine ( YPM250/320/350/420/508/600/660/800 ) |
Pellet Mill Style | - With Conditioner - With Screw Feeder |
Technical Parameters | - Capacity: 1-40(T/H) - Power of feeder: 1.5(kw) - Power: 37-250(kw) - Power of conditioner: 11(kw) - Pellet size: 1-5ø (mm) |

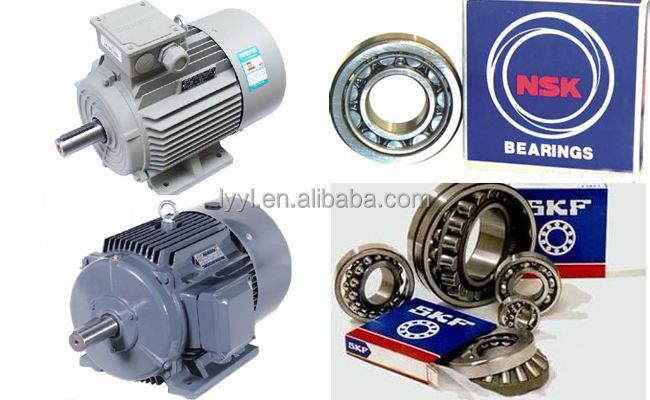

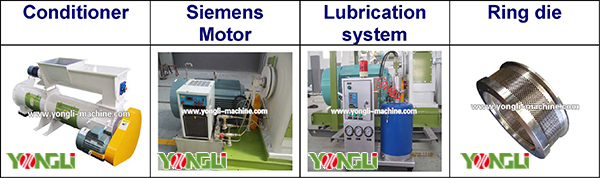

Features | - Suitable coupling assembly design - Siemens motor, NSK/ SKF bearing - Automatic Lubrication System - Cutting mechanism - Stainless steel ring die - Full stainless steel feeder - Stainless steel conditioner |
Optional Extras | - Double or triple conditioners |
Packing Details | Iron case or iron pallet etc |
MOQ | 1 set |
Payment | L/C, T/T, Western Union, Money Gram or negotiation |
Warranty | 1 year except spare parts |
Main technical parameters for related Models:
Model | Capacity (t/h) | Power (kw) | Inner diameter of die (mm) | Pellet size (mm) | Conditioner (kw) |
YPM250 | 0.5-2 | 11/15 | 250 | 2-12ø | 2.2 |
YPM320 | 2-4 | 37 | 320 | 2-12ø | 2.2 |
YPM350 | 3-6 | 55 | 350 | 2-12ø | 2.2 |
YPM420 | 6-14 | 110 | 420 | 2-12ø | 5.5 |
YPM508 | 6-20 | 132/160 | 508 | 2-12ø | 7.5 |
YPM660 | 8-25 | 185/200 | 600 | 2-12ø | 11 |
YPM800 | 15-28 | 280/315 | 800 | 2-12ø | 15 |
Beyond above models, as a professional manufacturer, we also can customize all kinds of feed pellet machine.
Until now, our feed machines have sold well to over 50 countries.
More project cases we finished, if you interest, we can send to you reference.

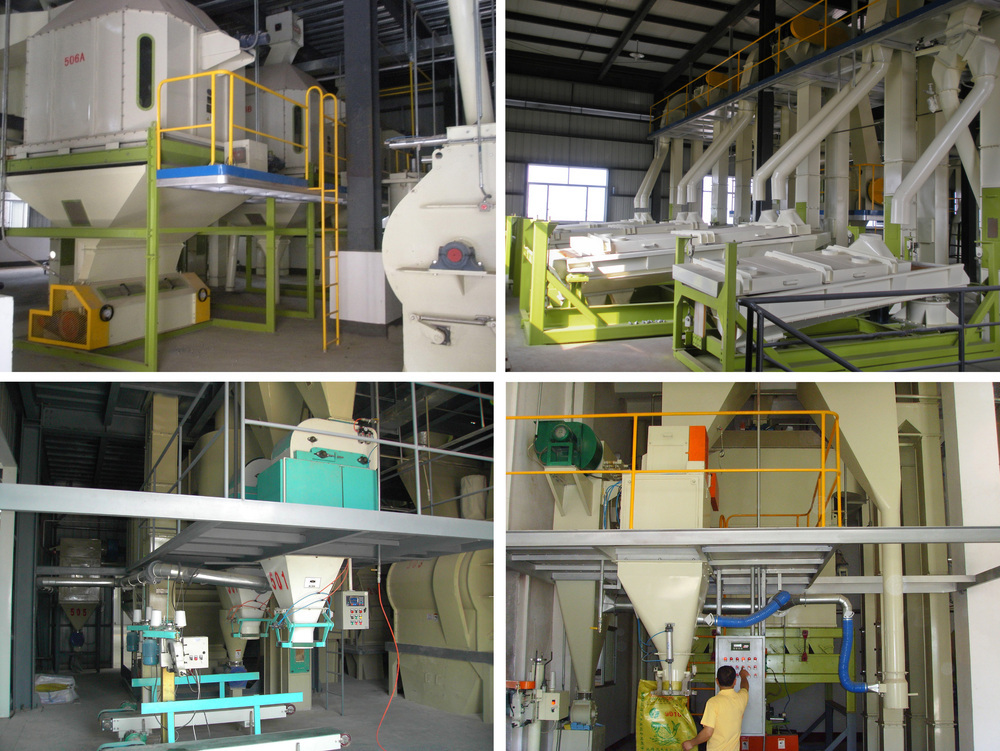

Related Production line:

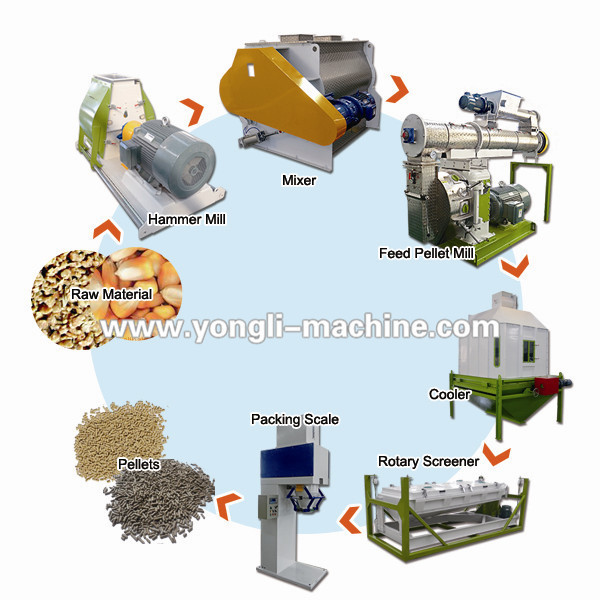

A complete animal feed production line includes: Hammer Process, Mixing Process, Pelletizing Process,
Cooling Process, Crumbling Process, Sieving Process and Packaging Process.
CE Certification
YONGLI passed CE certification for all of the exported machine:
YONGLI Customers
Many clients come to visit YONGLI factory for face to face discussing the technology drawing and order for details!
You are also always welcome!

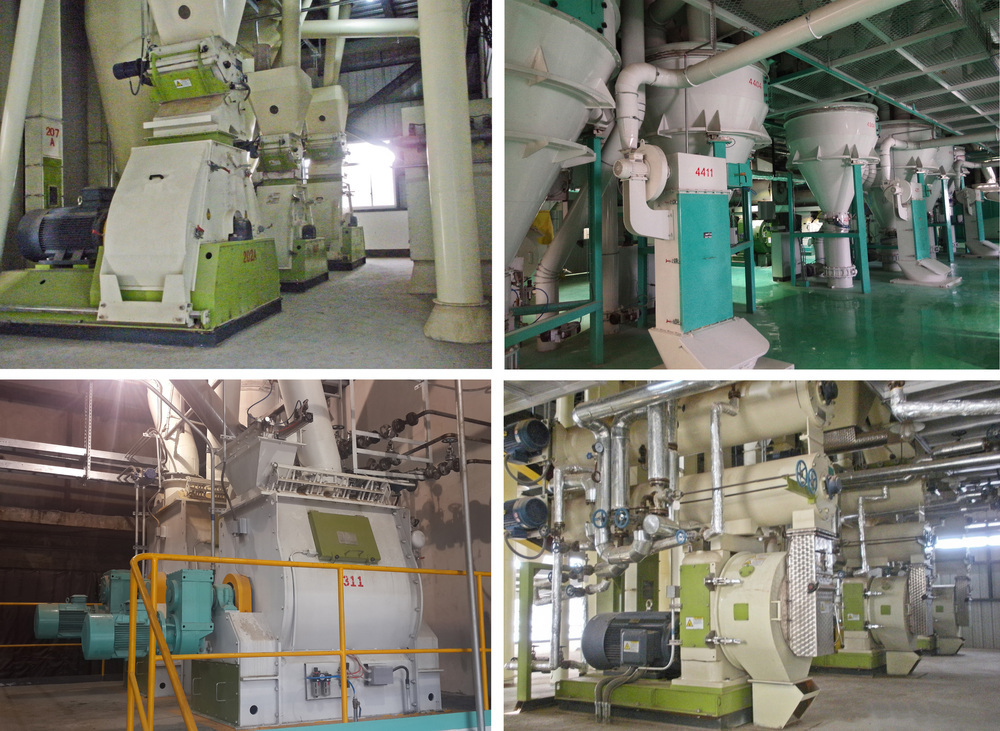

Production Flow
If you are interested in it, please kindly review the working process flow of our machine in YONGLI workshop:
Packaging & Shipping
YONGLI provide shipment terms per clients request like EXW factory, FOB shanghai, CFR & CIF client's port.
Our Services
1)Consultation service before, during and after-sales.
2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.
6) Provide 1-2 years warranty for main machine and life-time maintenance service.
