Wood biomass pellet machine


Product Description

Item

Performance indexes and technical parameters

 Model

YPM250

YPM320

YPM350

YPM420

YPM520

YPM660

YPM800

Capacity(t/h) Biomass





0.1-0.2

0.2-0.3

0.5-0.7

1-1.5

1.5-2

3-4

4.5-5

Motor power(kW)



15



37



55



90/110



132/160



185/200



250/280

Feeding screw power (kW)



0.55



0.55



0.75



1.5



1.5



3



3

Conditioner motor power(kW)



1.5

2.2

2.2

5.5

5.5

7.5

11

Forming rate of pellet

≥90%

≥90%

≥90%

≥90%

≥90%

≥90%

≥90%

Pulverization rate of pellet

≤10%

≤10%

≤10%

≤10%

≤10%

≤10%

≤10%

Noise dB(A)

≤86

≤86

≤86

≤88

≤88

≤90

≤90



Dimension

(mm)



L

1365

2006

2162

3298

3300

3500

3742

W

1300

800

893

1051

1300

1600

1800

H

1250

1801

1940

2543

2700

2850

2885

Granulator pellet mill/Wood Biomass pellet machine /Wood pelletizer

widely used to produce wood, straw, grass, rice husk, alfalfa, sawdust biomass pellets in biomass-energy

fuels plant, power plant, wood processing plant etc.

Factory price CE approval hot sell high capacity pellet machine manufacturer

Main Features

1. Gear driven.
2. Force feeder.
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, SKF bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.

Our Services

1)Consultation service before, during and after-sales.

2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.
6) Provide 1-2 years warranty for main machine and life-time maintenance service.

Biomass Line

1.Debarking Process

Yongli Debarker is applicable to peel log wood with diameter 10 to 600mm. The peeled rate is more than 95 percent.

2.Chipping Process

Since the raw materials are wood logs, branches, board etc, it to use wood chipper to produce it into smaller pieces.
3.GrindingProcess
Ourhammermillisusedtofurthercrushthesmallpiecesintoparticlesoflessthan1-3mm

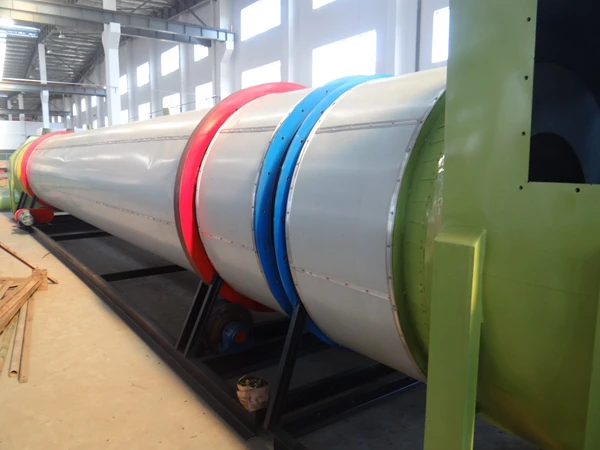

4.Drying Process

We have to use drum dryer to dry the sawdust.

The sawdust moisture before drying is normally: 30-60%, after drying is normally:13-15%

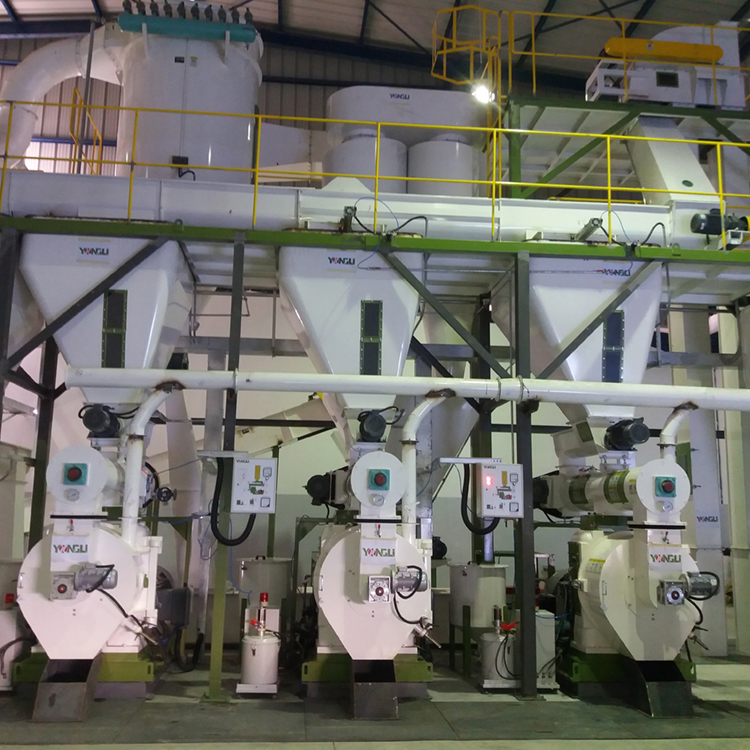

5.Pelleting Process

Pellet machine to make pellets into 6mm, 8mm, 10mm, 12mm etc, which can be produced based on client's request.

6.Cooling Process

After pellet mill, the temperature of pellets is between 60-80 degrees.

For storage purpose, a cooler must be used to reduce their surface temperature and moisture content.

7.Packing Process

Packing process is to protect of the pellets becoming getting damp, and it is useful for transport and market sales.



Factory price CE approval hot sell high capacity pellet machine manufacturerFactory price CE approval hot sell high capacity pellet machine manufacturer Factory price CE approval hot sell high capacity pellet machine manufacturerFactory price CE approval hot sell high capacity pellet machine manufacturer

CE Certification



Factory price CE approval hot sell high capacity pellet machine manufacturer

YONGLI Service

1)Consultation service before, during and after-sales.
2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.

Factory price CE approval hot sell high capacity pellet machine manufacturer

YONGLI Customers

Factory price CE approval hot sell high capacity pellet machine manufacturer



Contact us

TEL/Wechat/Whatsapp:0086-15190513782



Attn: Jessica Jiang

Address: No. 8, Xiangshan Road, Tianmu Lake Industry Area, Liyang, Jiangsu, China


Welcome your inquiry !
