Wood shredder


 / wood chipper

Product Description

Features for Wood chipper price drum wood chipper shredder

1. Biomass wood chipper machine available raw materials: wood logs, branches and twigs

with moisture more than 15%.

Available non-wood materials: sugar cane,reed,bamboo,slab,waste veneer,processing residues.etc.

2. Drum wood chipper is the special equipment for producing perfect wood chips.Logs and small

wood can be cut into high quality with even length and uniform chip thickness.

3. Low power consumption, which is 20-50% lower than similar product in market.

4. Special material blade, with high strength and anti-abrasion. Free of any professional tool sharpener,

 low maintenance cost, which enjoys the patent: ZL201420054885.

5. Feeding system consists of feeding and squeezing parts:

(1) Squeezing part: automatic controlled by hydraulic systems.
(2) Feeding system: can be frequency controlled and can prevent wood chipper from overload working

when it is overload, the material will be returned back.

6. Forging dead plate, with high strength and long service time.

7. Bearing adopts Sweden SKF heavy duty bearing, ensure the equipment's performance and service

life under continus full load operation state.

8. Siemens motor

We use famous brand parts to guarantee the quality of machine and every machines are processed in

our own CNC workshop.

Model

 YLBX2103

 YLBX2106

 YLBX2108

 YLBX21010

YLBX21013

Rotor diameter (mm)

  320

     650

    800

   1000

1300

Number of

rotor knives( pieces )

   2

      2

     16

    18

39

Feed opening (mm)

 120x350

  180x500

  250x600

  350x700

500*1000

Rotor speed ( rpm )

  760

    590

    650

   550

375

Feed speed ( m/min )

   37

     37

     26

    21

22

Stock processed

max diameter( mm )

   90

    120

    200

   300

450

Clip length ( mm )

   26

    22/30

     20

    20

20

Capacity (m³/h)

    6-8

     25

     33

    75

180

Main drive

motor power ( kw )

   30

     55

     90

   160

220-315

Feed roller

 motor power ( kw )

 1.1x2

    3x2

4x2

Optional frequency

7.5x2 Optional frequency

11x2

Optional frequency

Pump motor power ( kw )

 Manual

1.5 optional

1.5 optional

2.2

 2.2

Machine net weight ( kg )

  1250

   4070

   5700

7500

14500

Overall dimensions ( mm )

155x1184x1

120

4348x1730x1

258

2900x2990x1

500

3532x3260x1

650

5484*5400*

1860

Beyond above models, as a professional manufacturer, we also can customize pellet machine based on request.

Including diesel wood chipper, movable wood chipper, branch wood chipper, wood log wood chipper etc.

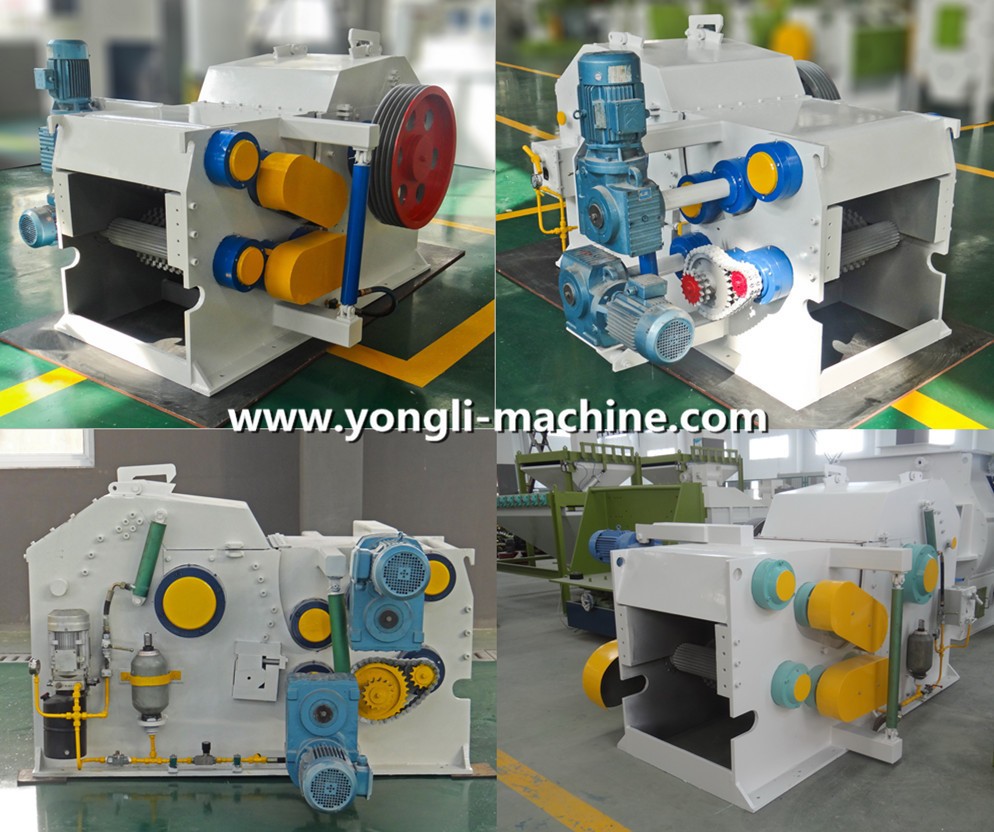

Drum wood chipping machine:
wood chipper shredder machine

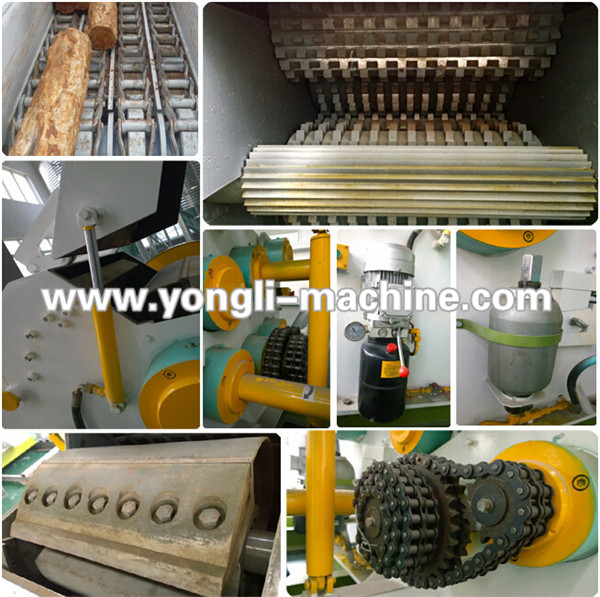

The Wood Chipping Process:

wood chipper shredder machine

Wood Chips After Chipping
wood chipper shredder machine

Until now, as a professional manufactuer of biomass machinery, we have finished various kinds of wood

chipper with very rich experience! And our products have been sold well to over 50 countries.

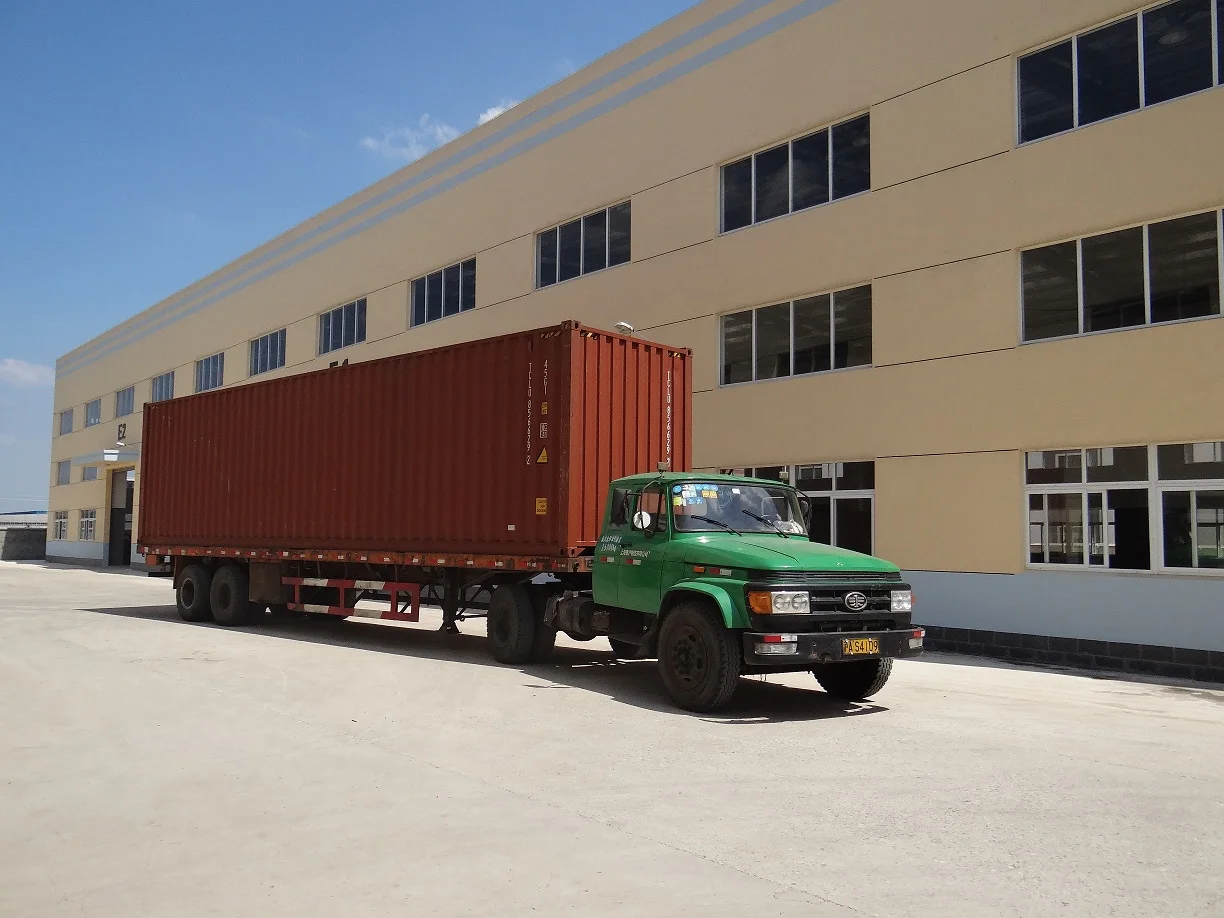

Packaging & Shipping

Packaging:Depending on customers'requirement,such as wooden box or Iron crate etc.

Shipping: Our shipping operator and delivering equipments will be ready on time to ensure goods shipped

based on Sales Order requirement When the container arrived our factory.



wood chipper shredder machine



Our Services

1.Make optimal design and layout according to clients raw material and capacity request.

2.Make booking for shipment from YONGLI factory to clients factory.

3.Provide installation and debugging for clients.

4.Provide free training on-site for clients.

5.Provide English manual for whole line machines to clients.

6.Quarterly return visit to clients.
If you are interested, welcome to inquiry us!

Advantages we have:

  -24 Hours Online Service.
  -Inquiry will be replied within 2 hours.
  -All-the-way tracking service offered from placing order to delivery.
  -Free training for operation, debugging and daily maintenance.
  -We can provide professional guide installation.
  -One year warranty and all-round after-sales service.
  -Customized design and flow chart are available for our clients.
  -Independent R&D team and strict & scientific management system.

Company Information

 Business type: manufacturer, trading company
Location: Changzhou, Jiangsu, China(mainland)
Year Established: 2003
Company certifications: ISO9001, CE, SGS
Main products:
Chipping line and pelleting line for biomass, includes pellet mill, hammer mill, drum dryer, wood chipper...

wood chipper shredder machine


Workshop show:

wood chipper shredder machine

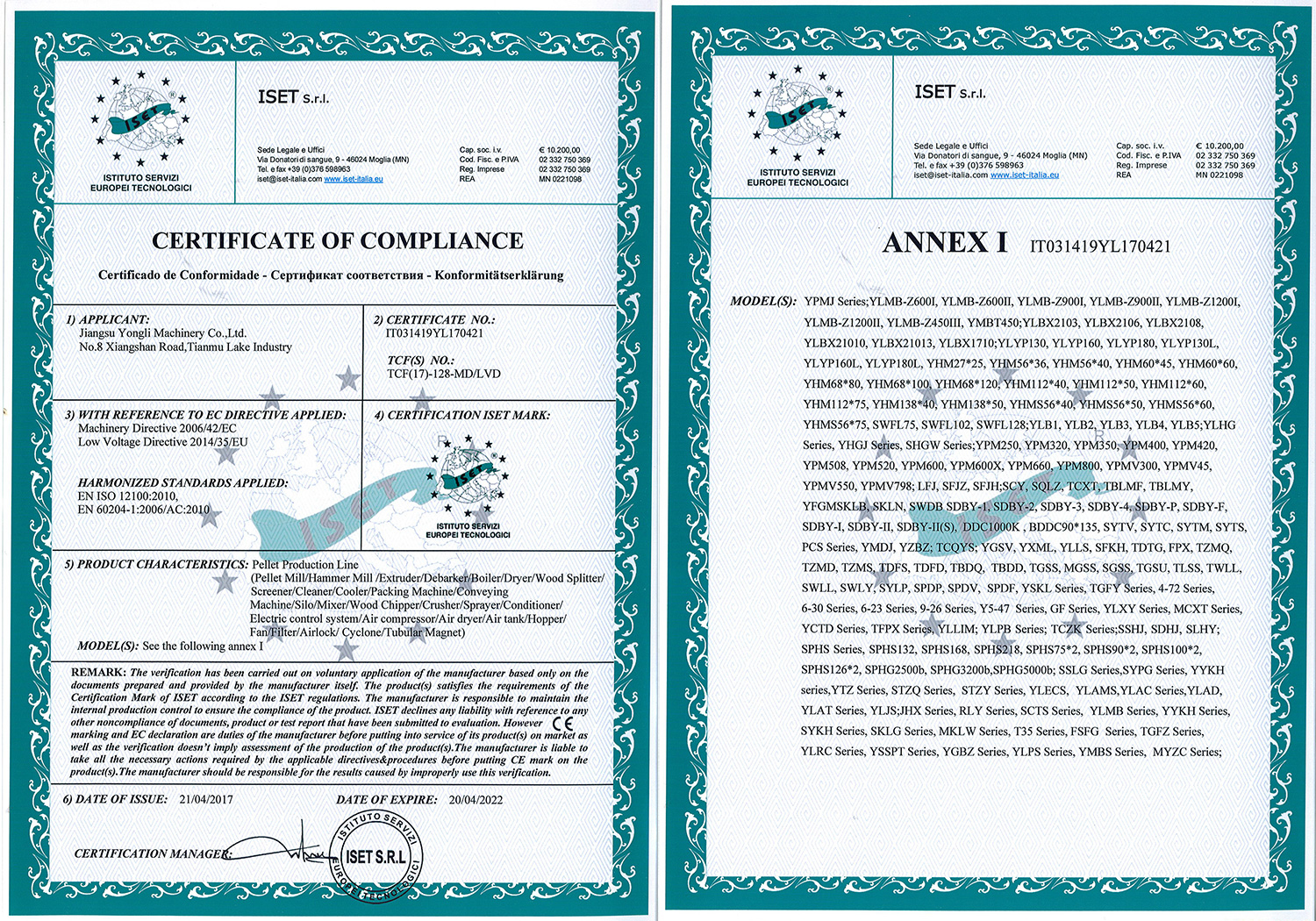

YONGLI Certificate



wood chipper shredder machine

FAQ

1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). The working lifespan of Yongli machines is at least 20 working years.
3). Yongli wins 21 national patents for machines by our senior R&D engineers.


2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has overseas service center in USA, Germany, Italy, Malaysia, Tunisa etc,

which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.


3. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.


4. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach

 them for the operation and maintenance. In addition, our engineers for guide assembly

will teach your staff on site.


5. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.


6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.


7. Where is your factory located? How can I visit there?
Answer: Our factory is located in Li yang City, Jiangsu Province, China, it is nearby Shanghai.

You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you

up at the airport or train station etc.

If you are interested in our products, please kindly tell us the following:
1. What's the capacity per hour that you want?
2. What's the diameter of the wood log?
